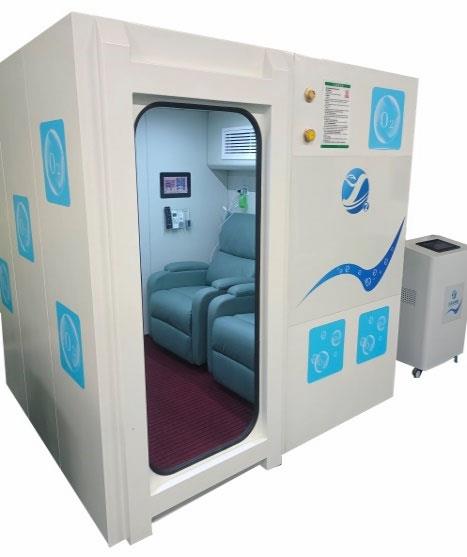

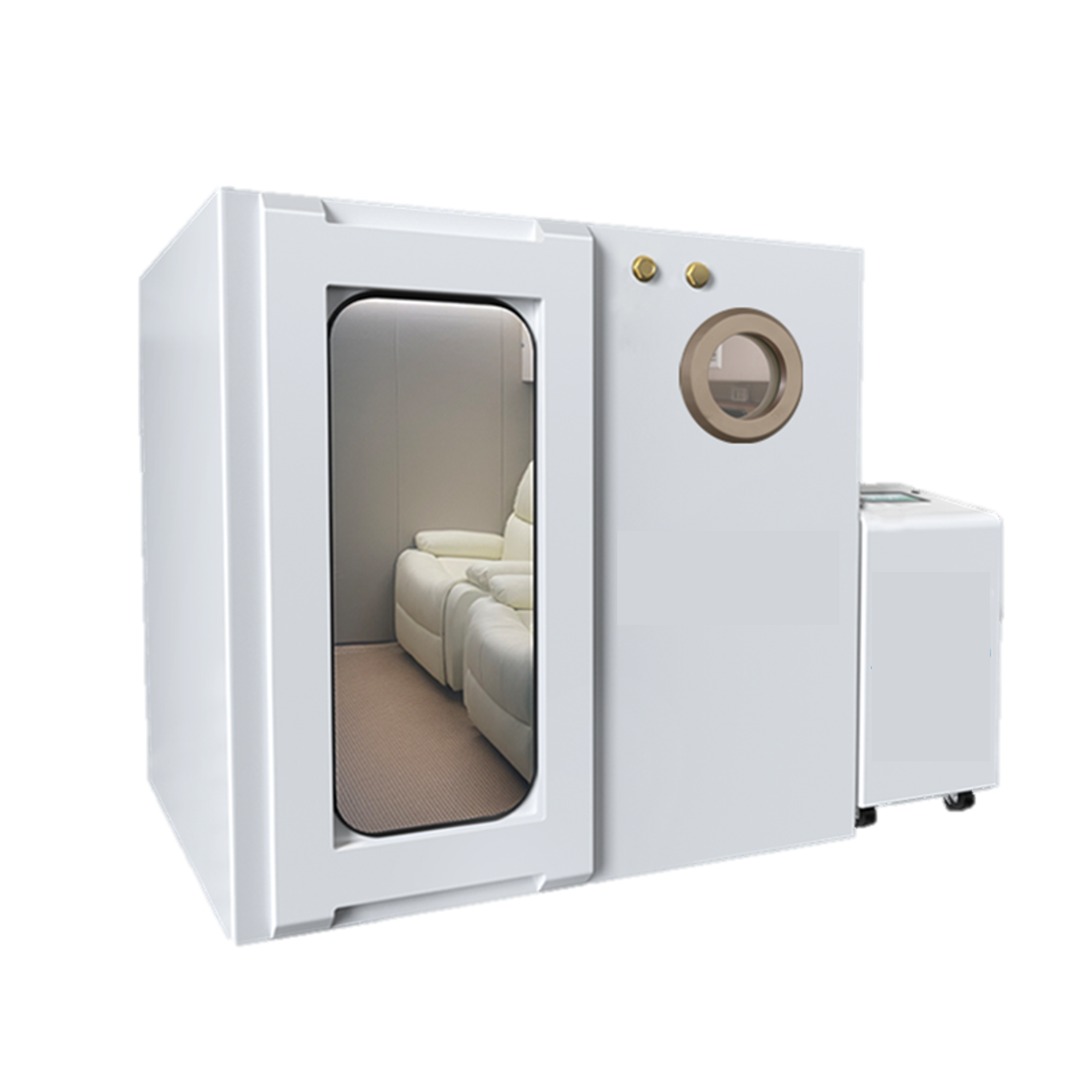

2,0 ATA Double seated Hyperbaric Room

This Hyperbaric room has a hard-shell seated type, with an internal and external touch-screen control panel.

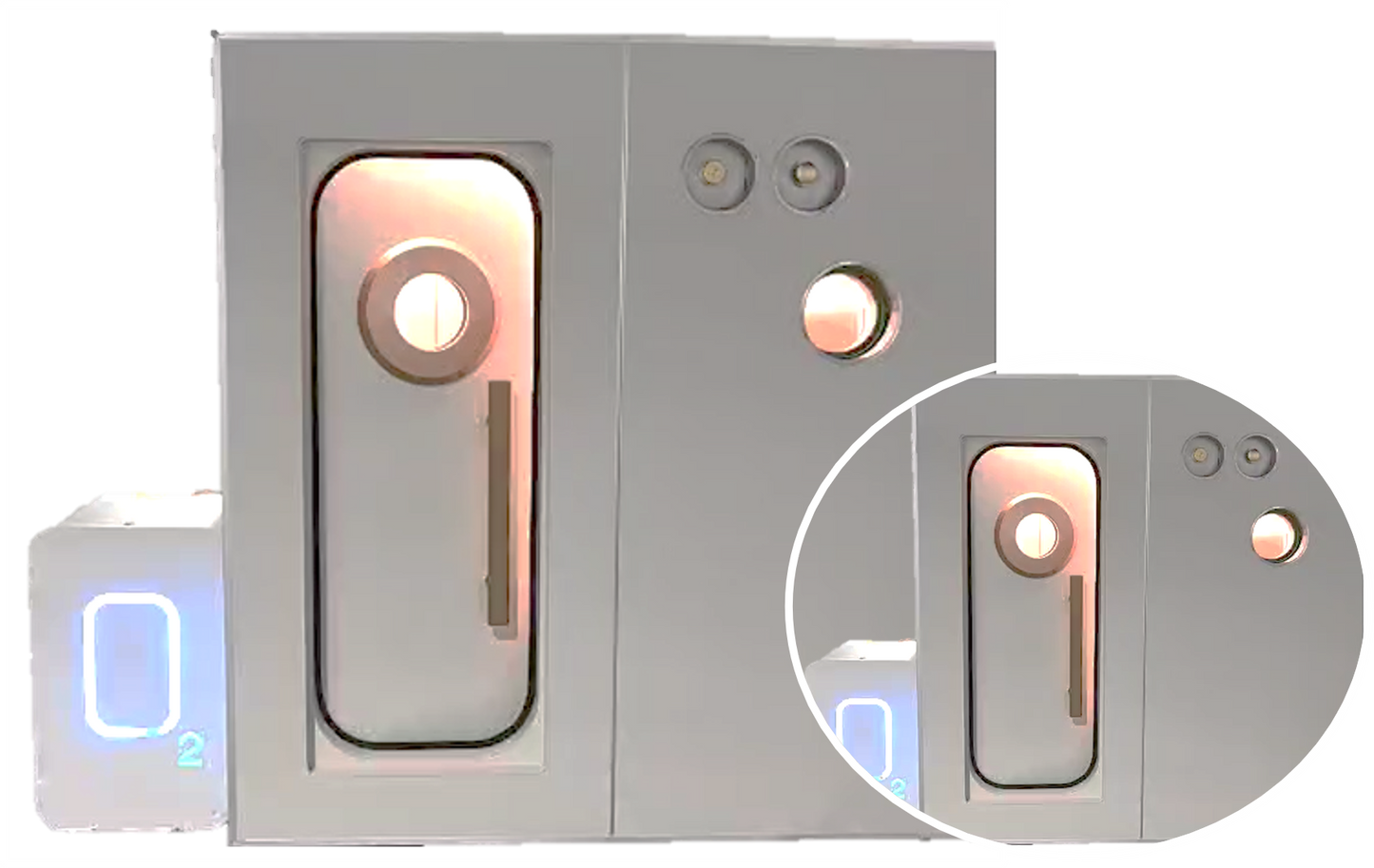

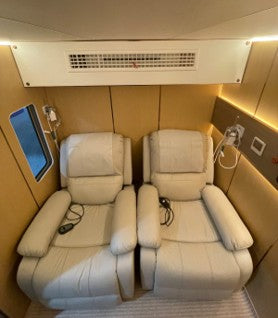

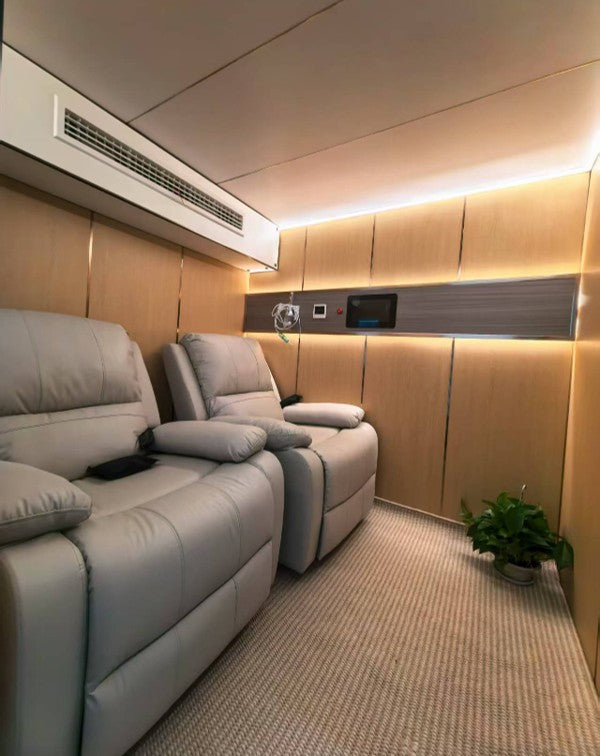

CE and ISO13485 approved. Chambers are made with 3,0 +- 0,2mm thickness with a PC Solid plate door that has a thickness of 10,5+-0,2mm. Internal upholstery is grey-white leather. 98% pure oxygen delivered via cannula mask with an 80 litre per minute oxygen setting. Cabin temperature is 16 to 30 degrees Celsius controlled by air conditioning. Internal and external safety pressure valves and takes approximately 2 Minutes to reach pressure and 10 seconds to reach back to 0 KPA.
The external control panel is provided with air, an oxygen start button, but also with a power indicator light. The high-definition LED display, indicates temperature, humidity, pressure, and oxygen concentration in real time. With timing function, the maximum setting time is 120 minutes. When the set time is up, the machine will stop running immediately. The chamber is equipped with a high-volume intercom system, so you can communicate with everyone in the chamber. All-in-one machine with safety socket, equipped with Mitsubishi PLC controller, and a flow control valve. The flow rate can be adjusted freely according to the "+ -" symbol above the knob. WIKA pressure gauge is used for the chamber.
